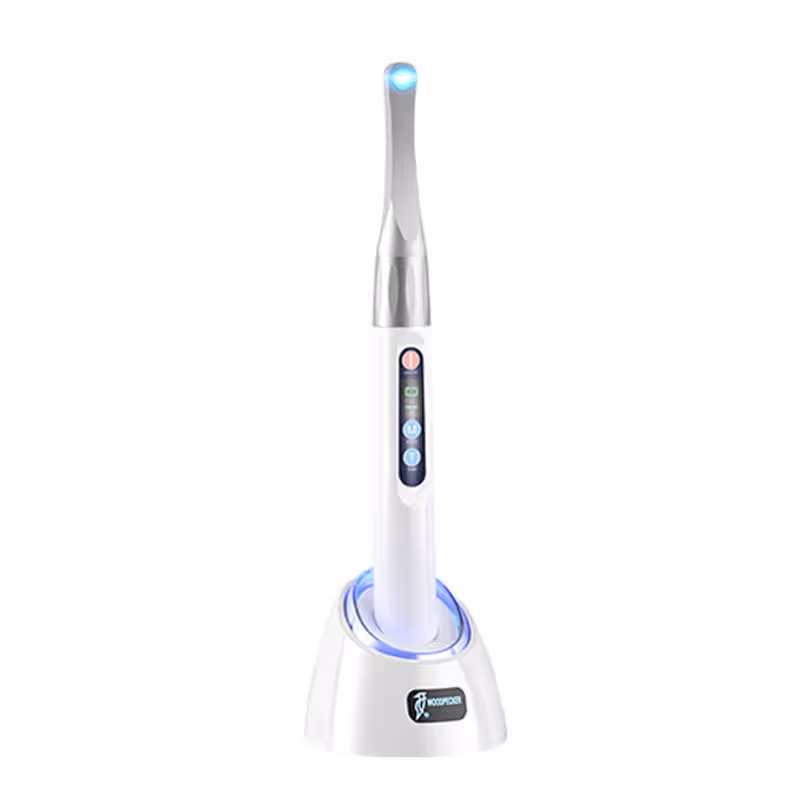

Woodpecker iLED Plus Light Cure Unit

Warranty- 1 Year.

Description:

The iLED Plus Curing Light is a high-performance dental curing device designed to enhance curing efficiency and quality. With a maximum light intensity of 2300 mW/cm², it can cure 2 mm of resin in just 1 second, making it ideal for orthodontic brackets, porcelain veneers, and post-core adhesives. One of its key features is the extended wide spectrum emission range of 385nm to 515nm, which includes the new 385nm to 420nm wavelength band, enabling the effective curing of resins with advanced photoinitiators like TPO. This ensures optimal curing for materials such as Tetric N-Ceram Bulk Fill, Amelogen Plus, and ENA Hri, reducing the risk of resin shedding and incomplete curing. Additionally, the iLED Plus incorporates innovative Woodpecker technology, which focuses the light output and narrows the light angle by 55.87%, increasing curing efficiency and ensuring consistent, high-quality results. These upgrades make the iLED Plus an essential tool for dental professionals seeking fast, reliable, and effective curing solutions.

Key Features:

1. Constant Power Output-Ensures consistent and reliable performance for teeth restoration.
2. 360° Curing-Reaches every angle of the restoration for even and thorough curing.
3. Fluid Design-Provides a comfortable and ergonomic hand feel for ease of use during procedures.
4. Fast Curing Time-Cures 2mm of resin in just 1 second, significantly improving treatment efficiency.
5. Wide Spectrum Emission Range-Emission wavelength range of 385nm to 515nm, compatible with a variety of resin materials.
6. Enhanced Wave Band for TPO Photoinitiators-Additional 385nm to 420nm wave band optimizes curing of resins containing new-style photoinitiators like TPO.
7. Reduced Resin Shedding & Incomplete Curing-Helps reduce the risk of resin shedding and ensures more thorough curing.
8. Compatibility with Bleached & Light-Colored Resins-Ideal for bleached resins and light-colored resins, thanks to its ability to effectively cure materials with TPO.
9. Dual Material Compatibility-Can cure both traditional materials with camphor quinone (absorbing peak at 460nm) and newer materials with TPO (absorbing peak at 405nm).
10. Reduced Camphor Quinone in Light-Colored Resins-Minimizes the need for large amounts of camphor quinone in bleached or light-colored resins, improving material efficiency.
11. Flexibility in Curing Options-Offers both ordinary curing and wide spectrum curing, providing flexibility for different dental applications.
12. Enhanced Curing Efficiency & Accuracy-The upgraded wide spectrum capabilities ensure higher curing efficiency and precise results during dental procedures.

Directions for Use:

1. Mode Selection
•Press the Mode Button to select between the two available modes: oTURBO Mode (P1):

Light intensity: 2300 mW/cm² - 2500 mW/cm²

Select cure time: 1 or 3 seconds oNORMAL Mode (P2):

Light intensity: 1000 mW/cm² - 1200 mW/cm²

Select cure time: 5, 10, 15, or 20 seconds
2. Operating the Curing Light Put the disposable sleeve on the top of the main unit.
•Aim the top at the correct position on the tooth or restoration.
•Press the ON/OFF button to start the curing process. The unit will produce a "Bi" sound, and blue light will be emitted according to the selected mode.
•The countdown timer will begin, and a tone will sound every 5 seconds. The light stops when the countdown reaches 0.
3. Stopping the Blue Light
•You can stop the blue light at any time during operation by pressing the ON/OFF button.
4. Restarting a Working Cycle
•After a completed cycle, press the ON/OFF button to start another cycle.
•Caution: Do not operate the unit for more than 10 cycles consecutively to avoid overheating. Wait for the unit to cool down before restarting.
5. Low Power Detection
•The unit has a built-in low power detection circuit. When the power is low, the display will blink, indicating the need for charging.
6. Charging Instructions
•Connect the adapter plug to an AC100V~240V power supply.
•Plug the adapter's output into the DC 5.0V input on the charging pedestal.
•When connected, the logo turns blue, and the unit will start charging.
•Place the main unit on the charging point of the pedestal.
•The display screen will show a scrolling display during charging. Once fully charged, the display will show "1111".
7. Disposable Sleeve Disposal
•After each use, remove the disposable sleeve and dispose of it properly. Do not reuse the sleeve.
8. Auto Shut-Off
•The unit will automatically turn off after 2 minutes of inactivity. Press any button to turn it back on.
9. Curing Depth
•The iLED Plus curing light can solidify composite materials to a depth of at least 2mm per second of exposure time.
