Name: Buy Silverline Biphasic Defibrillator at Best B2B Price Online | Medikabazaar
Brand: Silverline
SKU: MBPGLEESSTLAOB16858
Price: 107226 INR
Availability: InStock

Get Silverline Biphasic Defibrillator at wholesale B2B prices. India's trusted medical equipment platform for bulk hospital supplies & fast procurement. Shop now!

Defibrillation: Saving Lives with Electrical Therapy

Silverline meditech PVT. LTD.

Silverline

China

<html><body>The Silverline Biphasic Defibrillator with ECG and Printer (Model DF 201) is an advanced and reliable medical device designed for rapid response in emergency situations. This biphasic defibrillator integrates cutting-edge technology with user-friendly features to provide timely and effective cardiac care. Equipped with essential monitoring capabilities, this defibrillator ensures a comprehensive approach to cardiac resuscitation.Features:<ul><li>Input :150~270 VAC , 50Hz </li><li>Battery - 12V, 4.5Ah, Rechagable Battery Capacity 3 hours For monitor &amp; 70~100 Shocks on single Charge</li><li>Charging time less than 6 Seconds</li><li>Operation-by Front Panal Key board, Encoder &amp; ON-Off By front Panel Push Button</li><li>Display :7" Colour TFTwith ECG display and printer / Recorder</li><li>Input : 150 ~ 276 VAC, 50 Hz</li><li>Output : 17V at 4A</li><li>Power Consumption : 30 Watts (Max) in ECG mode</li><li>Operating Temp : -5°C to +50°C</li><li>Humidity : up to 95% non condensing</li><li>Rechargeable lithium battery with charger (11.1V)</li><li>LED Indicator : Low battery and battery charging</li></ul>Warranty :<ul><li>Main Unit : 1 Year</li><li>Not applicable for accessories</li></ul></body></html>

Defibrillator

<h5>Product Overview:</h5> <div class='row'> <div class='col-md-12'> <ul class='mb-description-list'> <li> Silverline Biphasic Defibrillator is used to perform defibrillation for the purpose of turning abnormal ECG rhythm into normal rhythm.</li></ul> <h5>Specifications: </h5> <table class='table table-bordered mb-specification-list'> <tr> <th>Model Number</th> <td>DF 201</td> </tr> <tr> <th>Input</th> <td>150~270 VAC , 50Hz</td> </tr> <tr> <th>Battery</th> <td>12V, 4.5Ah</td> </tr> <tr> <th>Display Size</th> <td>7 inch</td> </tr> <tr> <th>Input</th> <td>150 ~ 276 VAC, 50 Hz</td> </tr> <tr> <th>Output</th> <td>17V At 4A</td> </tr> <tr> <th>Power Consumption</th> <td>30 Watts (Max) In ECG Mode</td> </tr> <tr> <th>Operating Temp</th> <td>-5°C To +50°C</td> </tr> <tr> <th>Printer:</th> <td></td> </tr> <tr> <th>Paper Type</th> <td>Thermal Paper 50/55mm Width</td> </tr> <tr> <th>Event Printing</th> <td>Prints 5 Seconds Pre & Post ECG With Date, Time, Energy And Mode, Shock Status</td> </tr> <tr> <th>ECG In Defib Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Difib Mode</th> <td>Time, Date, Mode, Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>ECG In Monitor Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Monitor Mode</th> <td>Time, Date, Selected Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>Manual Defib Check Mode</th> <td>Print The Status Of Shock, Energy, Date And Time</td> </tr> <tr> <th>Humidity Up To</th> <td>0.95</td> </tr> <tr> <th>AED Mode:</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Bi Phasic</td> </tr> <tr> <th>AEC Shock Series</th> <td>Energy Level From 150 To 200J</td> </tr> <tr> <th>Shock Command</th> <td>Front Panel Button, Shock</td> </tr> <tr> <th>Charging Time</th> <td>Less Than 7 Seconds</td> </tr> <tr> <th>Controls</th> <td>Analyze, Pause</td> </tr> <tr> <th>Defibrillation Electrode</th> <td>Malfunction, Self Adhesive, Adult Electrodes</td> </tr> <tr> <th>Voice And Text Prompts</th> <td>Voice And Text Prompts To Guide User</td> </tr> <tr> <th>Pacemaker (Optional):</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Monophasic</td> </tr> <tr> <th>Modes</th> <td>Demand Or Non Demand</td> </tr> <tr> <th>Amplitude</th> <td>From 10 mA To 150 mA (Resolution Of 10 mA)</td> </tr> <tr> <th>Pulse Width</th> <td>40ms (± 1ms)</td> </tr> <tr> <th>Frequency</th> <td>From 20 ppm To 250 ppm (Increments Of 1 ppm)</td> </tr> <tr> <th>Refectory Period</th> <td>340 ms (From 30 To 80 ppm), 240 ms (From 90 To 180 ppm)</td> </tr> <tr> <th>Maximum Output Voltage</th> <td>150 V</td> </tr> <tr> <th>Impedance Range</th> <td>200 ? To 1 k?</td> </tr> <tr> <th>SpO2 (Optional):</th> <td></td> </tr> <tr> <th>Range</th> <td>0 ~ 100%</td> </tr> <tr> <th>Accuracy</th> <td>70 ~ 100% ±2%, 50 ~ 69% ±3%</td> </tr> <tr> <th>Pulse Rate</th> <td>Displayed When PR Is Deselected</td> </tr> <tr> <th>Pulse Beep</th> <td>Step Less Volume Control</td> </tr> <tr> <th>PR Range</th> <td>10 ~ 250 bpm</td> </tr> <tr> <th>NIBP (Optional):</th> <td></td> </tr> <tr> <th>Method</th> <td>Oscillometric</td> </tr> <tr> <th>NIBP Interval</th> <td>User Selectable - 3 min To 120 min</td> </tr> <tr> <th>Modes</th> <td>Manual, Auto</td> </tr> <tr> <th>Cuff Deflation</th> <td>Automatic</td> </tr> <tr> <th>Safety Features</th> <td>Automatic Deflation If Cuff Pressure Exceeds 280 mmHg</td> </tr> <tr> <th>Range</th> <td>10 ~ 250 mmHg</td> </tr> <tr> <th>NIBP Status</th> <td>Ready - When Not Taking Reading</td> </tr> <tr> <th>Patient Type</th> <td>Adult, Paediatric, Neonate</td> </tr> </table> </div> </div>

Silverline Biphasic Defibrillator

Features

Model

Description

Silverline Biphasic Defibrillator - With ECG DF 201

<html><body>The Silverline Biphasic Defibrillator - With ECG And Printer DF 301 is an advanced medical device engineered for rapid and effective intervention during critical cardiac emergencies. It combines state-of-the-art biphasic technology with essential monitoring features to support healthcare professionals in comprehensive cardiac care. This defibrillator is utilized to perform defibrillation, aiming to convert abnormal ECG rhythms into normal rhythms.The device delivers energy in a biphasic waveform, offering an energy range from 2 to 200 Joules across 12 steps, including 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, and 200 Joules. It supports both manual operating mode and an AED mode, providing versatility for different clinical scenarios. The AED mode features an AEC Shock series with energy levels from 150 to 200J and includes voice and text prompts to guide the user.Key Features : Energy delivery from 2 to 200 Joules in 12 selectable steps Biphasic waveform technology for effective defibrillation Supports both Manual and Automated External Defibrillator (AED) operating modes Equipped with a 7-inch Colour TFT display for ECG monitoring and a built-in printer/recorder Features optional pacing capability with monophasic waveform in demand or non-demand modes</body></html>

Key Specification & Dimensions

<h5>Product Overview:</h5> <div class='row'> <div class='col-md-12'> <ul class='mb-description-list'> <li> Silverline Biphasic Defibrillator is used to perform defibrillation for the purpose of turning abnormal ECG rhythm into normal rhythm.</li></ul> <h5>Specifications: </h5> <table class='table table-bordered mb-specification-list'> <tr> <th>Model Number</th> <td>DF 301</td> </tr> <tr> <th>Input</th> <td>150~270 VAC , 50 Hz</td> </tr> <tr> <th>Battery</th> <td>12 V, 4.5 Ah</td> </tr> <tr> <th>Operation</th> <td>By Front Panal Key Board, Encoder & ON-Off By Front Panel Push Button</td> </tr> <tr> <th>Display Size</th> <td>7 inch</td> </tr> <tr> <th>Input</th> <td>150 ~ 276 VAC, 50 Hz</td> </tr> <tr> <th>Output</th> <td>17 V At 4 A</td> </tr> <tr> <th>Power Consumption</th> <td>30 Watts (Max) In ECG Mode</td> </tr> <tr> <th>Operating Temperature</th> <td>-5°C To +50°C</td> </tr> <tr> <th>Humidity</th> <td>Up To 95% Non Condensing</td> </tr> <tr> <th>LED Indicator</th> <td>Low Battery And Battery Charging</td> </tr> <tr> <th>DEFIB:</th> <td></td> </tr> <tr> <th>Operating Mode</th> <td>Manual</td> </tr> <tr> <th>Energy</th> <td>2 To 200 Joules In 12 Steps [2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200 Joules]</td> </tr> <tr> <th>Charging Time</th> <td>Less Than 8sec</td> </tr> <tr> <th>Synchronous</th> <td>Energy Delivery Begins Within</td> </tr> <tr> <th>Paddle Assembly</th> <td>Energy Paddle Assembly With</td> </tr> <tr> <th>Check Mode</th> <td>Manual Test Mode</td> </tr> <tr> <th>AED Mode:</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Bi Phasic</td> </tr> <tr> <th>AEC Shock Series</th> <td>Energy Level From 150 To 200J</td> </tr> <tr> <th>Shock Command</th> <td>Front Panel Button, Shock</td> </tr> <tr> <th>Charging Time</th> <td>Less Than 7 seconds</td> </tr> <tr> <th>Controls</th> <td>Analyze, Pause</td> </tr> <tr> <th>Defibrillation Electrode</th> <td>Malfunction, Self Adhesive, Adult Electrodes</td> </tr> <tr> <th>Voice And Text Prompts</th> <td>Voice And Text Prompts To Guide User</td> </tr> <tr> <th>SpO2 (Optional):</th> <td></td> </tr> <tr> <th>Range</th> <td>0-100%</td> </tr> <tr> <th>Accuracy</th> <td>70-100% ±2%, 50-69% ±3%</td> </tr> <tr> <th>Pulse Rate</th> <td>Displayed When PR Is Deselected</td> </tr> <tr> <th>Pulse Beep</th> <td>Step Less Volume Control</td> </tr> <tr> <th>PR Range</th> <td>10-250 bpm</td> </tr> <tr> <th>Pacemaker (Optional):</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Monophasic</td> </tr> <tr> <th>Modes</th> <td>Demand Or Non Demand</td> </tr> <tr> <th>Amplitude</th> <td>From 10 mA To 150 mA (Resolution Of 10 mA)</td> </tr> <tr> <th>Pulse Width</th> <td>40ms (±1ms)</td> </tr> <tr> <th>Frequency</th> <td>From 20 ppm To 250 ppm (Increments Of 1 ppm)</td> </tr> <tr> <th>Refectory Period</th> <td>340 ms (From 30 To 80 ppm), 240 ms (From 90 To 180 ppm)</td> </tr> <tr> <th>Maximum Output Voltage</th> <td>150 V</td> </tr> <tr> <th>Impedance Range</th> <td>200 ? To 1 k?</td> </tr> <tr> <th>PRINTER:</th> <td></td> </tr> <tr> <th>Paper Type</th> <td>Thermal Paper 50/55 mm Width, 20 Meters Length For 2 inch Printer</td> </tr> <tr> <th>Event Printing</th> <td>Prints 5 Seconds Pre & Post ECG With Date, Time, Energy And Mode, Shock Status</td> </tr> <tr> <th>ECG In Defib Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Defib Mode</th> <td>Time, Date, Mode, Lead Name ,Gain, Sweep Speed</td> </tr> <tr> <th>ECG In Monitor Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Monitor Mode</th> <td>Time, Date, Selected Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>Manual Defib Check Mode</th> <td>Print The Status Of Shock, Energy, Date And Time</td> </tr> <tr> <th>NIBP (Optional):</th> <td></td> </tr> <tr> <th>Method</th> <td>Oscillometric</td> </tr> <tr> <th>NIBP Interval</th> <td>User Selectable - 3 min To 120 min</td> </tr> <tr> <th>Modes</th> <td>Manual, Auto</td> </tr> <tr> <th>Cuff Deflation</th> <td>Automatic</td> </tr> <tr> <th>Safety Features</th> <td>Automatic Deflation If Cuff Pressure Exceeds 280 mmHg</td> </tr> <tr> <th>Range</th> <td>10-250 mmHg</td> </tr> <tr> <th>NIBP Status</th> <td>Ready - When Not Taking Reading Measuring - When Taking Reading Error - If Reading Could Not Be Taken Due To Some Error While Measuring</td> </tr> </table> </div> </div>

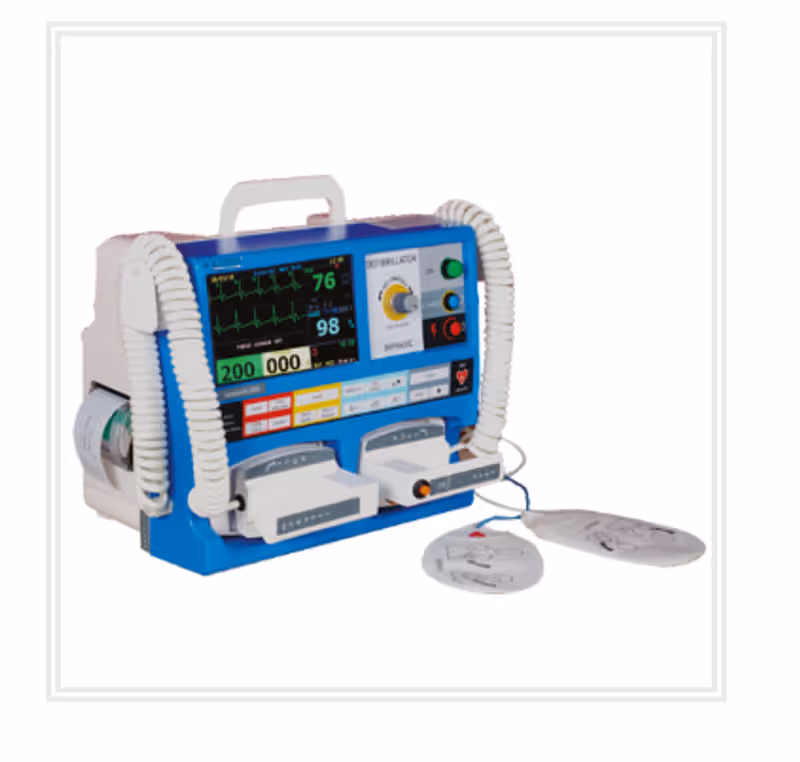

Silverline Biphasic Defibrillator - With ECG And Printer DF 301

<html><body>The Silverline Biphasic Defibrillator with ECG and AED (Automated External Defibrillator) capabilities, designated as Model DF 401, represents a cutting-edge solution for immediate and effective response in critical cardiac emergencies. This versatile device seamlessly integrates biphasic technology, real-time ECG monitoring, and automated external defibrillation, making it a comprehensive and user-friendly tool for both healthcare professionals and first responders.Features:<ul><li>Input :150~270 VAC , 50Hz </li><li>Battery - 12V, 4.5Ah, Rechagable Battery Capacity 3 hours For monitor &amp; 70~100 Shocks on single Charge</li><li>Charging time less than 6 Seconds</li><li>Operation-by Front Panal Key board, Encoder &amp; ON-Off By front Panel Push Button</li><li>Display :7" Colour TFTwith ECG display and printer / Recorder</li><li>Input : 150 ~ 276 VAC, 50 Hz</li><li>Output : 17V at 4A</li><li>Power Consumption : 30 Watts (Max) in ECG mode</li><li>Operating Temp : -5°C to +50°C</li><li>Humidity : up to 95% non condensing</li><li>Rechargeable lithium battery with charger (11.1V)</li><li>LED Indicator : Low battery and battery charging</li></ul>Warranty :<ul><li>Main Unit : 1 Year</li><li>Not applicable for accessories</li></ul></body></html>

<h5>Product Overview:</h5> <div class='row'> <div class='col-md-12'> <ul class='mb-description-list'> <li> Silverline Automatic External Defibrillator is a portable electronic device that automatically diagnoses the life-threatening cardiac arrhythmias of ventricular fibrillation (VF) and pulseless ventricular tachycardia.</li></ul> <h5>Specifications: </h5> <table class='table table-bordered mb-specification-list'> <tr> <th>Product Code</th> <td>DF 401</td> </tr> <tr> <th>Input</th> <td>150-270 VAC , 50Hz</td> </tr> <tr> <th>Battery</th> <td>12V, 4.5 Ah, Rechargeable Battery Capacity 3 Hour For Monitor & 70-100 Shocks On Single Charge</td> </tr> <tr> <th>Display</th> <td>7 inch Colour TFT With ECG Display And Printer, Recorder</td> </tr> <tr> <th>Input</th> <td>150-276 VAC, 50 Hz</td> </tr> <tr> <th>Output</th> <td>17V At 4A</td> </tr> <tr> <th>Power Consumption</th> <td>30 Watts (Max) In ECG mode</td> </tr> <tr> <th>Operating Temperature</th> <td>-5°C To +50°C</td> </tr> <tr> <th>Humidity</th> <td>Up To 95% Non Condensing</td> </tr> <tr> <th>LED Indicator</th> <td>Low Battery And Battery Charging</td> </tr> <tr> <th>Additional General Features:</th> <td></td> </tr> <tr> <th>Operating Mode</th> <td>Manual & AED</td> </tr> <tr> <th>Paper Type Printer</th> <td>Thermal Paper</td> </tr> <tr> <th>ECG:</th> <td></td> </tr> <tr> <th>Lead Selection For ECG</th> <td>Lead I, II And III</td> </tr> <tr> <th>Sweep Speed For ECG</th> <td>12.5, 25, 50 mm/s</td> </tr> <tr> <th>Waveform 1</th> <td>ECG</td> </tr> <tr> <th>Waveform 2</th> <td>4 sec Delayed (Cascaded)</td> </tr> <tr> <th>Freeze Mode</th> <td>To Freeze Up To 4 Second ECG</td> </tr> <tr> <th>Frequency Response</th> <td>0.5Hz To 35Hz</td> </tr> <tr> <th>Patient Isolation</th> <td>Optical Isolation</td> </tr> <tr> <th>Gain Setting</th> <td>0.5, 1 And 2</td> </tr> <tr> <th>CMRR</th> <td>= 90 dB</td> </tr> <tr> <th>Digital Filter</th> <td>Digital Signal Processing For Good Quality Of ECG</td> </tr> <tr> <th>Dimension</th> <td>280x330x200 mm</td> </tr> <tr> <th>Weight</th> <td>6.5 Kg</td> </tr> <tr> <th>Printer:</th> <td></td> </tr> <tr> <th>Paper Type</th> <td>Thermal Paper 50/55 mm Width, 20 Meters Length For 2 inch Printer</td> </tr> <tr> <th>Event Printing</th> <td>Prints 5 Seconds Pre & Post ECG With Date, Time, Energy And Mode, Shock Status</td> </tr> <tr> <th>ECG In Defib Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Difib Mode</th> <td>Time, Date, Mode, Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>ECG In Monitor Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Monitor Mode</th> <td>Time, Date, Selected Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>Manual Defib Check Mode</th> <td>Print The Status Of Shock, Energy, Date And Time</td> </tr> <tr> <th>AED Mode:</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Bi Phasic</td> </tr> <tr> <th>AEC Shock Series</th> <td>Energy Level From 150 To 200J</td> </tr> <tr> <th>Shock Command</th> <td>Front Panel Button, Shock</td> </tr> <tr> <th>Charging Time</th> <td>Less Than 7 sec</td> </tr> <tr> <th>Controls</th> <td>Analyze, Pause</td> </tr> <tr> <th>Defibrillation Electrode</th> <td>Malfunction, Self Adhesive, Adult electrodes</td> </tr> <tr> <th>Voice And Text Prompts</th> <td>Voice And Text Prompts To Guide User</td> </tr> <tr> <th>Pacemaker (Optional):</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Monophasic</td> </tr> <tr> <th>Modes</th> <td>Demand Or Non Demand</td> </tr> <tr> <th>Amplitude</th> <td>From 10 mA To 150 mA (Resolution Of 10 mA)</td> </tr> <tr> <th>Pulse Width</th> <td>40 ms (± 1 ms)</td> </tr> <tr> <th>Frequency</th> <td>From 20 ppm To 250 ppm (Increments Of 1 ppm)</td> </tr> <tr> <th>Refectory Period</th> <td>340 ms (From 30 To 80 ppm), 240 ms (From 90 To 180 ppm)</td> </tr> <tr> <th>Maximum Output Voltage</th> <td>150 V</td> </tr> <tr> <th>Impedance Range</th> <td>200? To 1k?</td> </tr> <tr> <th>SpO2 (Optional):</th> <td></td> </tr> <tr> <th>Range</th> <td>0-100%</td> </tr> <tr> <th>Accuracy</th> <td>70-100% ±2%, 50-69% ±3%</td> </tr> <tr> <th>Pulse Rate</th> <td>Displayed When PR Is Deselected</td> </tr> <tr> <th>Pulse Beep</th> <td>Step Less Volume Control</td> </tr> <tr> <th>PR Range</th> <td>10-250 bpm</td> </tr> <tr> <th>NIBP (Optional):</th> <td></td> </tr> <tr> <th>Method</th> <td>Oscillometric</td> </tr> <tr> <th>NIBP Interval</th> <td>User Selectable - 3 min To 120 min</td> </tr> <tr> <th>Modes</th> <td>Manual, Auto</td> </tr> <tr> <th>Cuff Deflation</th> <td>Automatic</td> </tr> <tr> <th>Safety Features</th> <td>Automatic Deflation If Cuff Pressure Exceeds 280 mmHg</td> </tr> <tr> <th>Range</th> <td>10-250 mmHg</td> </tr> <tr> <th>NIBP Status</th> <td>?Ready? - When Not Taking Reading, ?Measuring? - When Taking Reading, ?Error? - If Reading Could Not Be Taken Due To Some Error While Measuring</td> </tr> <tr> <th>Patient Type</th> <td>Adult, Paediatric, Neonate</td> </tr> </table> </div> </div>

Silverline Biphasic Defibrillator - With ECG DF 201

Product Insights

Complete Guide to Defibrillation: How It Works, When It's Needed, and How to Perform It Safely
