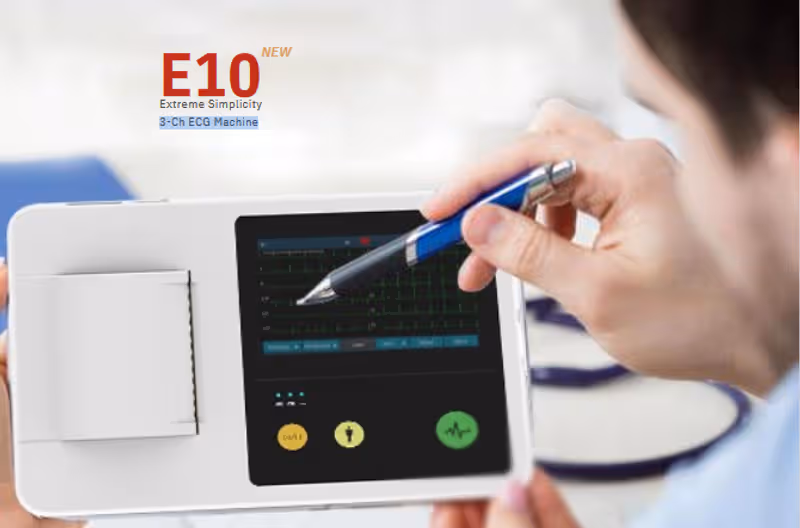

Zoncare Extreme Simplicity 3-Ch ECG Machine E10

Zoncare Extreme Simplicity 3-Ch ECG Machine E10 is an advanced 3-channel ECG machine designed for precise and efficient cardiac diagnostics. Engineered for hospitals, clinics, and mobile healthcare services, this device offers real-time waveform preview, automated measurement, and analysis to enhance diagnostic accuracy.With a 5-inch high-resolution touchscreen, clinicians can effortlessly assess lead signal quality and access pre-programmed case templates for streamlined workflow. The device's compact, lightweight design (only 1 kg) ensures portability, while its long-lasting rechargeable battery (over 5 hours of continuous use) guarantees reliability in high-demand clinical environments.

• High Diagnostic Accuracy: 280 pre-programmed case templates for rapid and precise analysis.
• User-Friendly Touchscreen: 5-inch display for easy navigation and signal assessment.
• Compact & Portable: Weighs just 1 kg, ideal for mobile healthcare settings.
• Long Battery Life: 5+ hours of continuous operation on a single charge.
• Seamless Data Management: Store up to 5000 ECG readings and export data via USB.

• ECG Electrodes & Leads: High-sensitivity lead wires for clear signal acquisition
• Touchscreen Display: Responsive, high-contrast interface for real-time monitoring
• Thermal Printer: Integrated roll-paper system for instant ECG result documentation
• Battery & Power Adapter: Long-lasting rechargeable battery for uninterrupted operation

1. Power On: Turn on the Zoncare Extreme Simplicity 3-Ch ECG Machine E10 using the main switch.
2. Attach Electrodes: Place ECG electrodes on the patient as per standard lead positioning guidelines.
3. Select Mode: Choose from automatic, manual, or rhythm mode depending on clinical requirements.
4. Monitor & Analyze: View real-time ECG waveforms on the touchscreen and check for signal clarity.
5. Record & Print: Capture ECG readings and print results using the built-in thermal printer.
6. Store & Export: Save recordings on internal memory or export via USB for further analysis and sharing.

• Use only Zoncare-approved accessories to ensure accuracy and device longevity.
• Ensure proper electrode placement for error-free ECG recordings.
• Do not expose the device to moisture or direct sunlight.
• Keep the machine fully charged before extended use.
• Store in a dry, dust-free environment when not in use.
