Name: Buy RMS X-Ray Machine 500-MA Fixed Fixed Full Room at Best B2B Price Online | Medikabazaar
Brand: RMS
SKU: MBPGEHMERGDNCI60745
Price: 999600 INR
Availability: InStock

Question 1

What is the maximum power output and kV range of the HFX 40 system?

Accepted Answer

The HFX 40 delivers a maximum power output of 40 kW with a wide kV range of 40–125 kV, adjustable in fine 1 kV steps. This enables precise control over image quality and penetration for varied radiographic examinations across different anatomical regions and patient types.

Question 2

What are the focal spot sizes available on this X-ray tube?

Accepted Answer

The rotatory anode X-ray tube features dual focal spots of 1.0 mm and 2.0 mm. The smaller 1.0 mm focal spot provides enhanced spatial resolution for detailed imaging, while the 2.0 mm focal spot accommodates higher mA settings for faster exposures when needed.

Question 3

What mA range does the HFX 40 support and how does it affect exposure control?

Accepted Answer

The system supports a flexible mA range of 10–500 mA with independent exposure control, allowing technicians to optimize tube current for different clinical protocols. This wide range accommodates both high-resolution imaging at lower mA and rapid exposures at higher mA settings.

Question 4

What collimation and positioning features does the fixed stand provide?

Accepted Answer

The system includes a Manual Light Beam Diaphragm (LBD) collimator for precise field alignment and a Fixed Stand (FS) with wide vertical travel and ±180° rotation movement. This design enables flexible tube positioning for chest, abdominal, and extremity radiography while maintaining accurate field definition.

Question 5

What regulatory approvals and quality standards does the HFX 40 meet?

Accepted Answer

The HFX 40 is ISO 13485:2016 and ISO 9001:2015 certified, and holds BIS and AERB approvals. These certifications confirm compliance with international medical device quality and radiation safety standards required for operation in Indian diagnostic and hospital facilities.

Question 6

What control interface and display system does the HFX 40 feature?

Accepted Answer

The system is equipped with a soft-touch keypad and color TFT display for intuitive user operation. The user-friendly control panel enables quick parameter adjustment and real-time monitoring during radiographic procedures.

Category	Specification
Maximum Output	40 kW
kV Range	40 – 125 kV (1 kV steps)
mA Range	10 – 500 mA
mAs Range	0.4 – 1000 mAs
Timer Range	1 – 10000 msec
X-ray Tube	Rotatory anode with dual focal spot
Focal Spot Size	Large: 2.0 mm, Small: 1.0 mm
Collimator	Manual, Light Beam Diaphragm (LBD)
Generator Frequency	220 kHz
Stand	Fixed Stand (FS)
Tube Head Positioning (FS)	FS
Min. Focal Spot Height	520 mm
Max. Focal Spot Height	2160 mm
Vertical Travel	1640 mm
Max. Horizontal Extension	370 mm
Rotation Movement	±180°
Control Panel	Control Panel
Display	Color TFT
Input	Soft touch keypad
Power Supply	Power Supply
Input Voltage	3 Phase, 400V AC ±10%
Input Frequency	50/60 Hz ±1 Hz
Power Requirement	50 kVA
Mechanical Dimensions	Weight
Generator	420 × 523 × 475 mm, 68 kg
Control Panel	550 × 340 × 1057 mm, 18 kg
Fixed Stand	830 × 1200 × 2900 mm, 160 kg
Accessories	Accessories
Collimator	Manual Light Beam Collimator
Hand Switch	With retractable cord
Radiography Mode	Manual Mode
Certifications	ISO 13485:2016, ISO 9001:2015, BIS, AERB

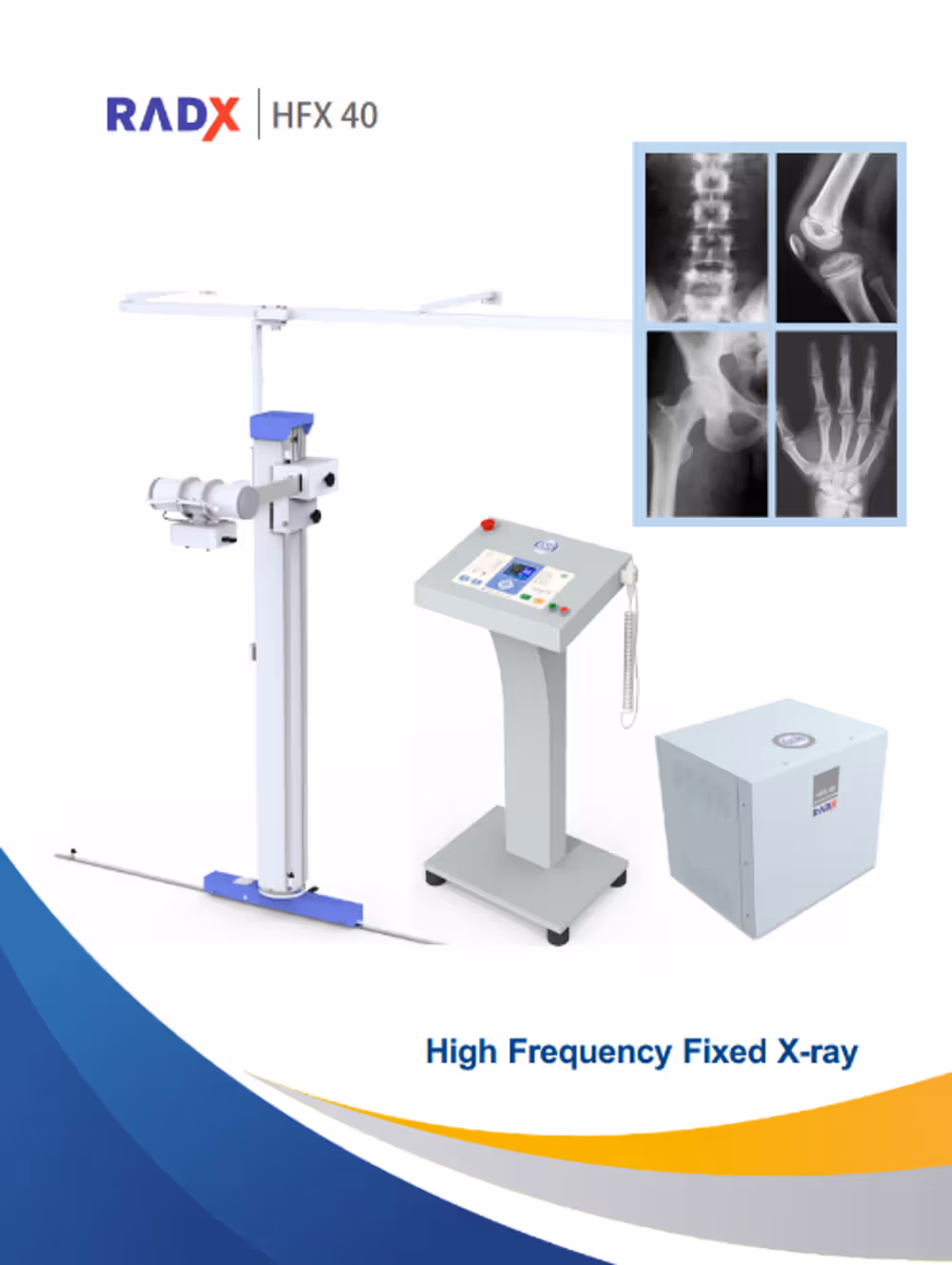

RMS X-Ray Machine 500-MA Fixed Fixed Full Room Xray with Chest Stand and Bucky Table - (HFX 40)
