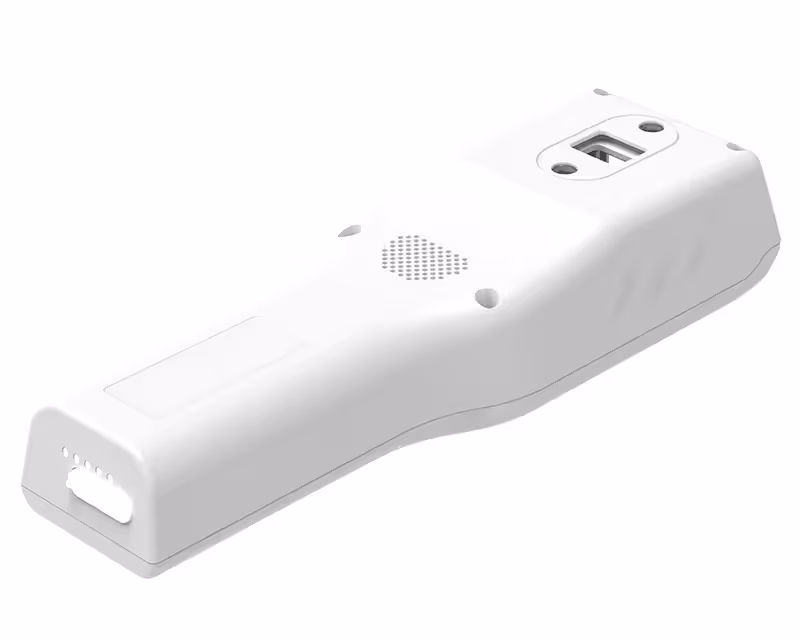

Pigeon Vein Finder - DVA30
View Product Details
₹97,650
₹1,26,000
23% Off
Inclusive of 5% GST
Model
Buy 11 & Get 1% OFF
Unit price : ₹96,673.50
Buy 21 & Get 3% OFF
Unit price : ₹94,720.50
Buy 31 & Get 4% OFF
Unit price : ₹93,744
Your Advantages
Delivery By
Enter location
Subtotal :
₹97,650
Want to buy bulk quantity?
Brand: Pigeon
Country of Origin: India
What's in the Box
1 x Vein Finder, 1 x rechargeable battery, 1 x Manual
The Pigeon Vein Finder - DVA30 is a portable medical device designed to observe subcutaneous superficial veins and assist venipuncture procedures. It provides quick vascular assessment and helps medical staff locate patient blood vessels without direct contact during use. This handheld vein finder is small and light, featuring a built-in high-capacity rechargeable lithium battery, allowing medical personnel to easily assess and search for blood vessels.
The DVA30 utilizes near-infrared light, ensuring no radiation exposure during operation. It is capable of identifying deep blood vessels with high image alignment accuracy, detecting vessels with a minimum diameter of 1.0mm. The device offers adjustable settings including various color modes, projection sizes, and brightness levels to suit different skin tones, ages, and operating environments.
Key Features :
Assists venipuncture by observing subcutaneous superficial veins and providing quick vascular assessment
Utilizes near-infrared light as its source, ensuring no radiation during use
Identifies blood vessels with a minimum diameter of 1.0mm and an image accuracy of 0.2mm
Offers an image resolution speed of 30 frames per second
Features a focusing distance of 200mm ± 20mm
Provides three levels of brightness adjustment: High 338cd/m² (3.61lm), Medium 234cd/m²(2.56lm), and Low 118cd/m²(1.28lm)
Includes contrast strength modes such as Normal Mode, Enhanced Mode, and Depth Mode
Supports multiple imaging colors including Green/Blue, Purple/White, Green/White, Red/White, and Black/White
Allows for image sizes of Full Size (81mm×49mm), 1/2 Size, and 1/3 Size
Equipped with a low battery indicator that illuminates when the battery voltage is below 3.5V±0.1V
| Core Clinical Function | Observe subcutaneous superficial veins and assist venipuncture |
| Light Source Type | Near-infrared light (no radiation) |
| Infrared Wavelength | 400nm~650nm |
| Minimum Identifiable Diameter | 1.0mm |
| Image Accuracy | 0.2mm |
| Image Resolution Speed | 30 Frames/sec |
| Focusing Distance | 200mm±20mm |
| Brightness Adjustment | High 338cd/m² (3.61lm), Medium 234cd/m²(2.56lm), Low 118cd/m²(1.28lm) |
| Contrast Strength | Normal Mode, Enhanced Mode, Depth Mode |
| Imaging Color | Green/Blue, Purple/White, Green/White, Red/White, Black/White |
| Image Size | Full Size (81mm×49mm), 1/2 Size, 1/3 Size |
| Battery | 3.7V 5.2Ah rechargeable Li-ion battery |
| Battery Life | ≥5 hours |
| Charging Time | 6 to 8 hours |
| Input Rate | 100~240VAC, 50~60Hz, 0.4A |
| Product Dimensions | 220mm(W) x 70mm(D) x 40mm(H) |
| Product Weight | 0.9kg |
The DVA30 can identify blood vessels with a minimum diameter of 1.0mm, enabling detection of both superficial and deeper veins. This high sensitivity allows medical staff to locate suitable venipuncture sites even in patients with difficult vascular access.
The DVA30 is equipped with a 3.7V 5.2Ah rechargeable lithium-ion battery that provides a minimum of 5 hours of continuous operation. The device includes a low battery indicator that activates when voltage drops below 3.5V, ensuring you are alerted before power depletion.
The DVA30 provides three contrast modes—Normal, Enhanced, and Depth—to optimize vein visualization in different clinical scenarios. It supports five color imaging combinations (Green/Blue, Purple/White, Green/White, Red/White, and Black/White) allowing operators to select the most suitable display for their clinical environment and patient population.
The DVA30 delivers an image accuracy of 0.2mm with a refresh speed of 30 frames per second, ensuring precise real-time vascular mapping during venipuncture procedures. The focusing distance is set at 200mm±20mm, optimizing the working distance for typical clinical use.
Yes, the DVA30 features three adjustable brightness levels: High (338cd/m²), Medium (234cd/m²), and Low (118cd/m²), allowing adaptation to varying ambient lighting conditions in different clinical settings. This flexibility ensures optimal vein visualization whether used in brightly lit operating theatres or dimly lit diagnostic areas.
The DVA30 is a handheld device weighing 0.9kg with dimensions of 220mm×70mm×40mm, designed for portability across clinical areas. It operates on universal AC input (100-240VAC, 50-60Hz) with a charging time of 6-8 hours, and optional fixing brackets are available to secure the device during procedures.
