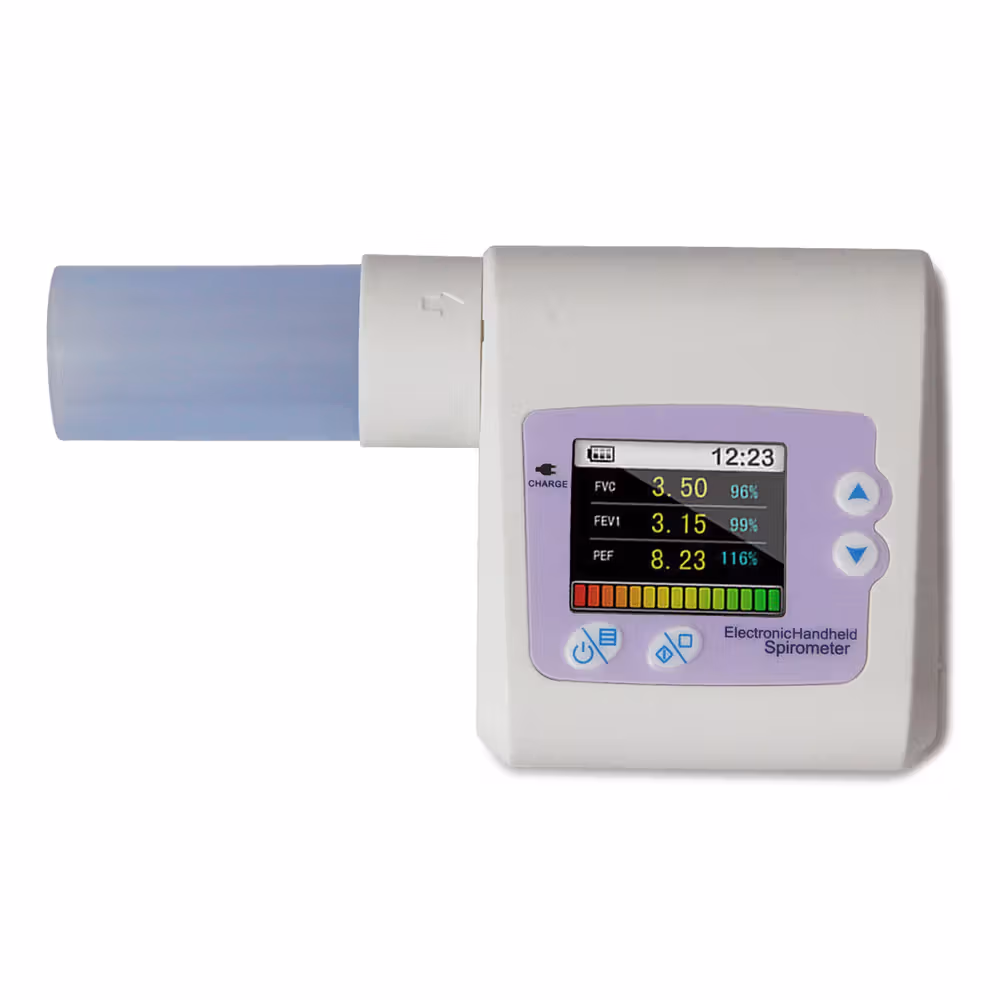

Contec Hand Held CMS-SP10 Spirometer

The Contec Hand Held CMS-SP10 Spirometer is a portable device designed for assessing lung function. It measures key respiratory parameters such as Forced Vital Capacity (FVC), Forced Expiratory Volume in one second (FEV1), Peak Expiratory Flow (PEF), and various Forced Expiratory Flow (FEF) values, aiding in the diagnosis and monitoring of respiratory conditions like asthma and COPD. This spirometer is suitable for use in clinical, diagnostic, and home settings.

The device features a 1.8-inch TFT colour screen with LED backlight and a resolution of 160 x 128 pixels for clear display of real-time flow-volume and volume-time waveforms. It offers a volume range of 0 to 10 liters with an accuracy of ±3% or 0.05 liters, and a flow range of 1 to 16 L/S with an accuracy of ±10% or ±0.3 L/s. The internal memory can store up to 9,999 test records.

For safety, the spirometer provides information prompts when volume or flow limits are exceeded and includes an automatic power-off function after one minute of inactivity. Data can be transferred to a PC via a USB interface for detailed analysis using proprietary software. The Contec Hand Held CMS-SP10 Spirometer is powered by a DC3.7V rechargeable lithium battery, offering portability with dimensions of 97mm(L) × 89mm(W) × 36mm(H) and a net weight of 150g.

Key Features :

Core Clinical Function: Measures FVC, FEV1, PEF, FEF25, FEF50, and FEF75 for comprehensive lung function assessment.
Key Operating Parameters: Features a 1.8-inch TFT colour screen (160 x 128 pixels) displaying real-time flow-volume and volume-time waveforms.
Connectivity / Integration: Equipped with a USB interface for data export to PC software for analysis.
Power / Portability: Operates on a DC3.7V rechargeable lithium battery, with a compact and lightweight design (150g).
Regulatory Approval: CE certified, FDA 510(k) Cleared, and compliant with ISO 26782 standards.
