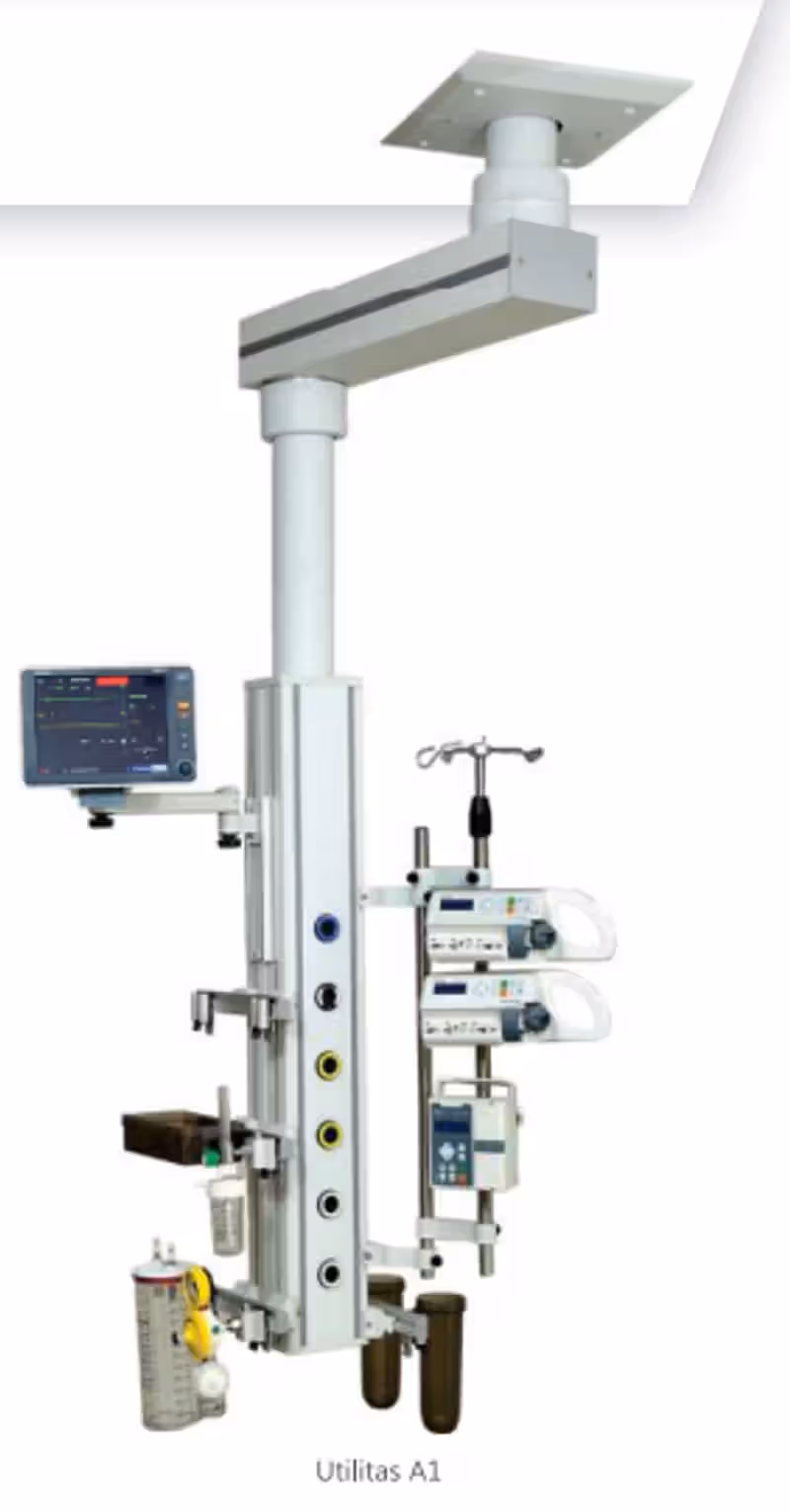

Aktiv Anesthesia Pendant Utilitas A1 633A000
Exclusive of 12% GST
Aktiv Anesthesia Pendant Utilitas A1 633A000
₹1,85,980
Exclusive of 12% GST
KYC is needed to buy this product.
See why?Check delivery date at your location
View EMI T&C here
Purchase with Credit
Get Interest-free credit with easy and quick approval & hassle free payments
More Related Terms
MB Benefits
Know More
Product Details
HSN: -
Description: Revolutionize your medical workspace with the Aktiv Anesthesia Pendant Utilitas A1 633A000, a cutting-edge solution designed to optimize efficiency and functionality in healthcare environments. This ceiling-suspended, single-arm anesthesia pendant sets new standards in medical equipment, providing a comprehensive and versatile platform for anesthesiologists and medical professionals.
Crafted with meticulous attention to detail, this pendant features a functional radius of 636 mm, complying with the rigorous requirements of the harmonized standard BS EN ISO 11197:2016. The rotating arm and utility console, with a 330° range of motion on its axis, enable dynamic positioning and effortless access to essential medical equipment.
Key Features:
Construction Excellence:
- The pendant's construction is a testament to durability and aesthetic appeal, utilizing extruded aluminum profile (Alloy 6063 T6) with an epoxy coating finish (RAL 7035 Textured).
- A double insulation jacket covers electrical wires, providing enhanced safety in medical settings.
Versatile Utility Console:
- The utility console (170mm x 160mm x 1224mm) is a multifunctional hub designed to accommodate medical rails, monitor shelves, syringe pump stand, IV pole, and telescopic pole, offering a customizable workspace.
- The console's design prioritizes accessibility, ensuring medical professionals have quick and convenient access to essential tools.
Comprehensive Utilities:
- The pendant boasts 6 standard outlets, with 2 dedicated to O2, vacuum, and air (double lock), each pre-wired with power and multi-standard electrical sockets.
- Additionally, the console includes 2 RJ 45 data sockets, facilitating seamless connectivity in modern healthcare setups.
Integrated Gas and Vacuum System:
- Gas and vacuum supplies terminate at the NIST interface, equipped with non-return valves for system pipeline leak tests before connection.
- All electrical power supplies terminate at the electrical junction box, ensuring a streamlined and organized setup.
Medical Rail Compatibility:
- The homogeneous extruded aluminum medical rail is a versatile addition, supporting the mounting of secondary equipment. It allows the easy clamping of accessories required for patient care services.
Benefits:
Enhanced Functionality:
- The rotating arm and utility console provide a wide range of movement, ensuring optimal positioning during medical procedures.
- The customizable nature of the utility console allows medical professionals to tailor their workspace to specific procedural requirements.
Seamless Connectivity:
- The provision of outlets and sockets on the utility console follows the HTM 02-01 standard, offering a comprehensive and standardized connectivity solution for medical equipment.
Safety Assurance:
- The pendant prioritizes safety with protective earthing, compartmentalized gas and power connections, and a rust-proof, trivalent zinc-plated suspension assembly.
- Compliance with safety standards ensures a secure and reliable medical environment.
Compliance and Quality:
- Built to comply with stringent standards, this anesthesia pendant is designed to meet the diverse and demanding needs of modern medical facilities.
Sold by AKTIV TECHNOLOGIES PRIVATE LIMITED & fulfilled byMedikabazaar
Country of Origin | India |
---|---|
Description | Utilitas A1 |
Pendant Configuration | Stationary with 1 Arm Rotation - 330º + Utility Console 330º |
Length - Lateral Arm | 810mm |
Functional Radius | 636mm |
Rotation Utility Console | 0 to 330º |
Utility Console Size (L x W x H) | 170mm x 160mm x 1224mm |
Weight (Approx) | 40 Kgs |
Payload (Max.) | 150 Kgs |
Gas & Vac. Terminals | 6 Nos. Pre-piped & Customizable combinations |
Terminal type | DISS, BS, DIN, PB & Ohmeda (Any one type) (BS by default) |
220V AC Electrical | sockets Four shutter type multi-standard sockets compatible to 5-6-10-13A plugs and three 16A sockets will be provided |
Communication Ports | 1 - RJ45 Data socket, 1 - RJ11 Telephone socket |
Support System - Medical Rail | Horizontal Medical Rail 320mm - 3 Nos. with clamps Optional - Monitor stand with mounting bracket assembly and arm Optional - Vertical round pole for Syringe Pump cum IV stand with clampsVertical Boom Alloy 6063 T6 : Extruded round aluminium profile (T = not less than 3mm). To specify Optional - Crimped medical gas tube to connect secondary devices, Table top, Pole, Holder extensions, Shelves, Catheter jar, Suction jar, Bottle holders, Utility basket, Rubbish bag holder, Clamps for medical rail, Wire basket etc |
Earthing | Protective Earth |
SEEB (Optional) | Plug and socket for Supplementary Equipotential Earth Bonding |
Protection | Class II, IP51 |
Mounting | Complete mounting system with NIST connection for gas & vac services and terminals for power connection |
Vertical Boom | Alloy 6063 T6 : Extruded round aluminium profile (T = not less than 3mm). To specify length i.e. Console 1224mm + Additional boom required |
Body (Pendant) | Alloy 6063 T6 : Extruded aluminium profile (T = not less than 2.5mm) |
Suspension Assembly | Pre-engineered Rust-proof (passivate) Trivalent Zinc plated (8-10µm) steel |
Finish (Pendant) | Epoxy coating to RAL 7035 (Textured) |
Certifications | ISO 13485:2016 – Medical devices – Quality Management SystemsISO 9001:2015 – Quality Management Systems CDSCO License No. - MFG/MD/2023/000469 |
