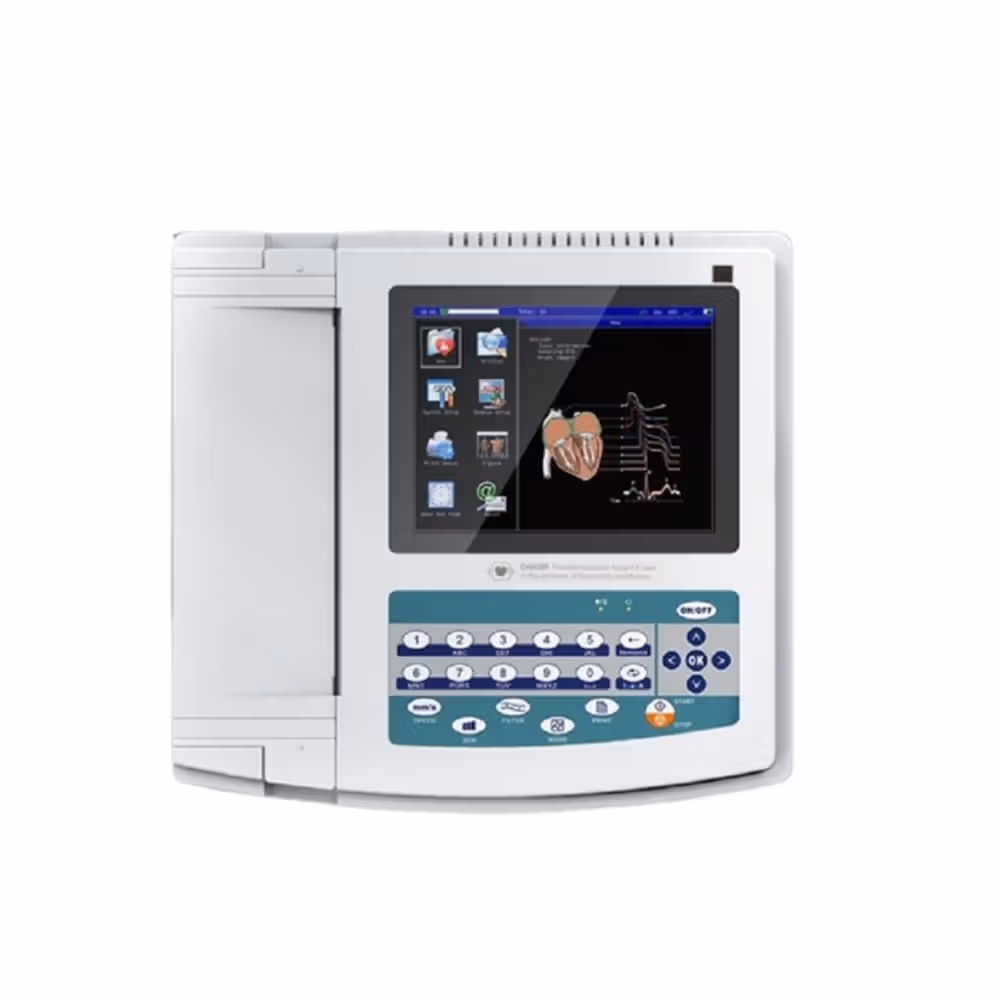

Contec Twelve Channel ECG Machine - 1200G

₹46,400

₹46,800

1% Off

Exclusive of 12% GST

View Product Details

Free
Delivery

Hassle Free
Cancellations

7 Day Replacement
Policy

Check delivery date at your location

Purchase with Credit

Get Interest-free credit with easy and quick approval & hassle free payments

Share your thoughts on this product

Incorrect Prices? Missing Information? Delivery time too high?

Product Details

What is in the box

1 x A lead cable, 1 x A limb electrode, 1 x A chest electrode, 1 x A thermal recording paper, 1 x A power cord, 1 x An earth wire, 1 x A user manual

Product Description:

Features:

  • Recording and displaying ECG waveform in AUTO/Manual mode measuring and diagnosing ECG waveform parameters automatically prompting for “Leadoff” and “Lack of paper
  • Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
  • Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
  • Multiple printing modes and formats, including auto 12x1, auto6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
  • Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
  • With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor's burden.
  • Built-in memory stores up to 1000 cases, convenient for case review and statistic.
  • Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.
  • In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it 3s case), which meets the requirements of visiting a patient at home and body examination.

Sold  & fulfilled byMedikabazaar

Country of OriginChina
Screen size8 inches
Leads12 leads
Input wayFloating and defibrillation protection
LeadStandard 12 leads(model:BIP0057)
Patient leak current<10µA
Input impedance≥50MΩ
Frequency response0.05Hz~150Hz(-3dB)
Time constantTime constant>3.2s
CMRR>60dB, >100dB( Adding filter)
EMG interference filter35Hz(-3dB)
Recording wayThermal printing system
Specification of recording paper210mm(W)*20m(L) high-speed thermal paper
Paper speedAuto record: 25mm/s, 50mm/s, error:±5%
Paper speedRhythm record: 25mm/s, 50mm/s, error:±5%
Paper speedManual record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5%
Sensitivity selections2.5,5,10,20,40mm/mV, error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV.
Auto recordRecord setup according to auto-record format and mode, automatically changing leads, measuring and analyzing.
Rhythm recordRecord setup according to rhythm record format and mode, automatically measuring and analyzing.
Manual recordRecord setup according to manual record format, manually changing leads.
Measurement parametersHR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P A*is, QRS A*is, T A*is, R(V5) , S(V1) , R(V5)+S(V1)
Product safety typeClass I CF applied part; there is defibrillation and pacing protection circuit in it.
Enduring polarization voltage±300mV
Noise level≤15µVp-p
Fuse specification2 pcs φ5*20mm AC time lag; T1.6A/250V(Power supply 220V)
Size340mm(L)*320mm(W)*85mm(H)
Net Weight3.2Kg
